lorawan gateway

LoRaWAN IoT Gateway & Sensor Node

LoRaWAN (Long Range Wide Area Network) gateways are critical components in IoT (Internet of Things) networks, serving as intermediaries between end devices and the network server. They utilize the LoRa (Long Range) modulation technique to enable long-range, low-power wireless communication. LoRaWAN gateways receive data from numerous IoT devices,and forward it to the cloud via standard IP connections such as Ethernet, 4G, or Wi-Fi. These gateways support bi-directional communication, ensuring not only data collection but also control commands back to devices. By enabling extensive coverage and supporting a massive number of devices, LoRaWAN gateways are essential for scalable, cost-effective, and energy-efficient IoT deployments.

Download Brochure

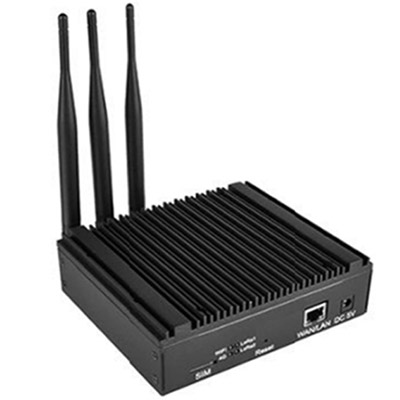

LoRAWAN Gateway Features:
  • Broadcom BCM2711 quad-core Cortex-A72
  • 4GB LPDDR4-2400 SDRAM
  • 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac
  • LoRaWAN Multichannel Concentrator(SX1303)
  • Self-healing bi-directional mesh network.
  • Full LoRaWAN 1.0.2 stack support.
  • Frequency: IN865 MHz (Indian Standard)
  • Bluetooth 5.0, BLE, GigaBit Ethernet, 4G/2G
  • 2 x USB 3.0 & USB 2.0, 1 x RS485,1 x RJ45.
  • 4 x DI (Isolated), 4 x DO (Isolated)
  • 4 x AI (4-20mA,0-10V) (Isolated)
  • 5KVA Surge & ESD Protection
  • Power Supply: 10.8 ~ 36 V
lorawan industrial gateway

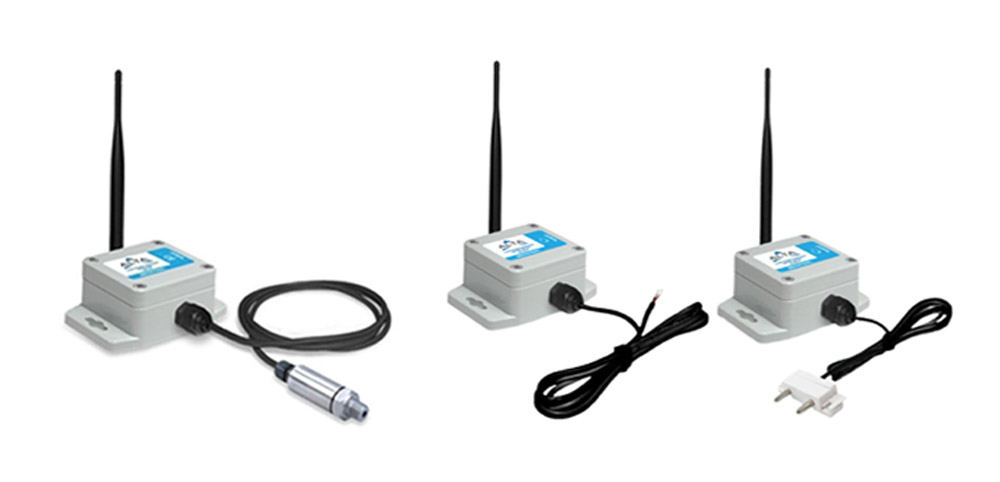

LoRaWAN Sensor Node
  • Microcontroller: ESP32-S3 WROOM-1-N16R8
  • 240 MHz processor with 16MB Flash and 8MB PSRAM
  • 1 x RS485/RS232, 4 x AI (4–20mA / 0–5V)
  • 2 x Isolated Digital Inputs (up to 24V)
  • 2 x Relay Outputs (30V DC/2A)
  • LoRAWAN Frequency: IN865
wireless pressure sensor
