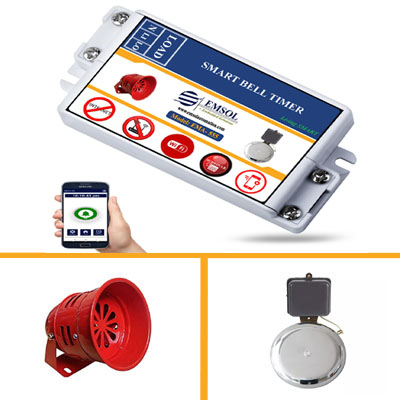

Smart School/College/Factory Bell Timer

Smart Bell Timer is a mobile app based wireless easily programmable timer used for bell/siren automation at Schools,Colleges & Factories, It works based on schedules, It has an internal Real time Clock, so interenal time will not change during power shut down. Scheduling can be done by using Android Mobile App without having Internet connectivity or Wi-Fi router !

Download Brochure

Features:

Specially Designed for Bell/ Siren Scheduling.
Internet or Router is not required to function
One to One Communication - Mobile to Device
One Time Device Configuration is Enough!
Turn On/Off bell manually through Android App
Easily sct bell On Time & bell ringling duration
All Day, Mon, Tue, Wed, Thu, Fri, Sat, Sun Schedule Possible
User can program maximum 20 schedles per day
Device Configuration through Android App
230V 6/9/12" Gong bell/Siren Option
Supports Upto 1200 W Load
Dimension- 75 mm x 43 mmx 27 mm (L x B x H)

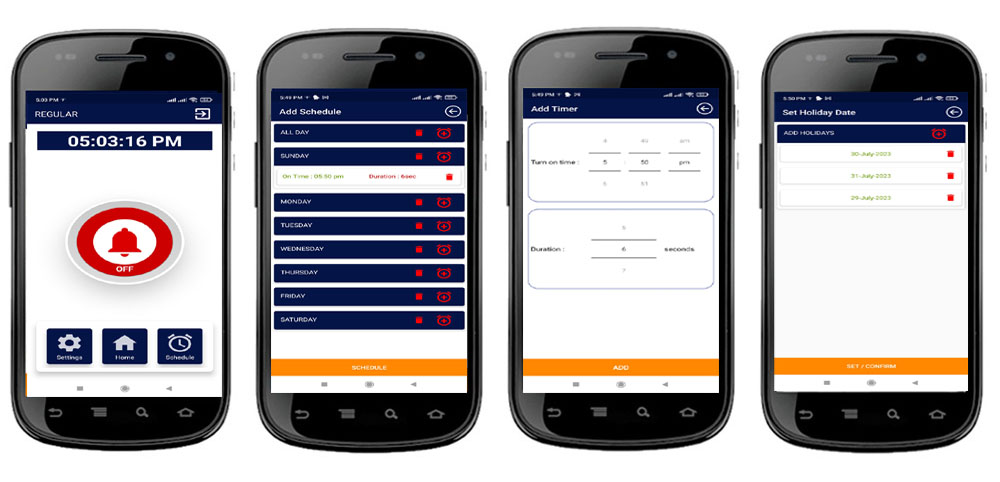

Mobile App

Mobile App will be available at Android Play Store
Easily set Light bell on Time & duration of bell ringing
Easily change device SSID & Password through Mobile App
User can add Holidays to avoid bell ringing
Factory reset available at mobile App

Device installation

10 sec Programming possible, No button Programming but only wireless programming

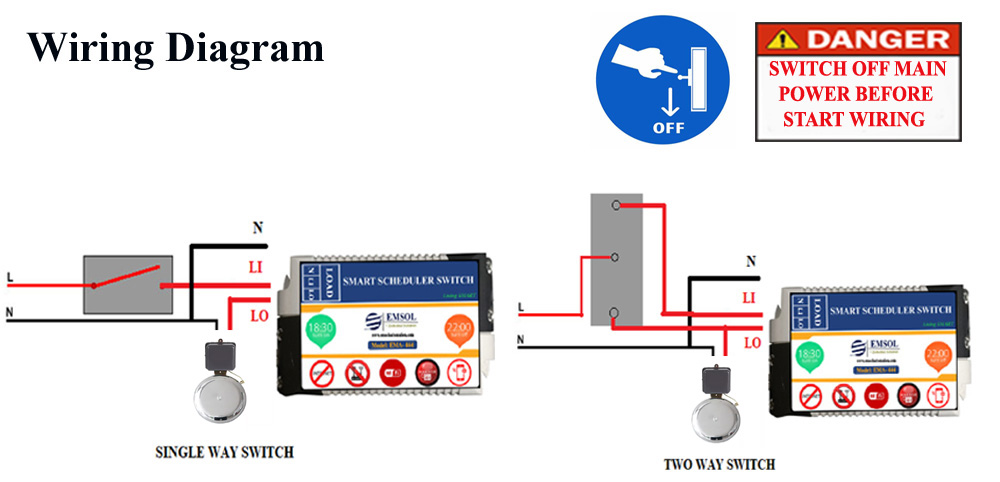

Simply connect the device in between switch & Bell/Siren
Recommend to connect the device at two way physical switch
Single Output load will be there, can be connected one bell/Siren
Hardware reset switch avilable at the device
